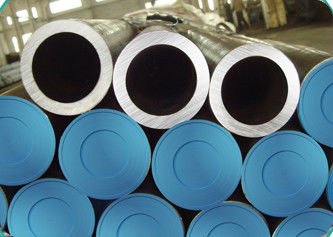

ASTM A209 ASME SA209 Carbon Steel Seamless Boiler Tube, GR. T1, T-1a, minyak atau acar atau permukaan lukisan hitam

Ukuran tabung untuk Heat Exchanger & Kondensor & Boiler

Diameter luar

BWG

25

22

20

18

16

14

12

10

Ketebalan dinding mm

0.508

0.71

0.89

1.24

1,65

2.11

2.77

3.40

mm

inci

Berat kg / m

6.35

1/4

0,081

0,109

0,133

0,174

0,212

9,53

3/8

0,126

0,157

0,193

0,257

0,356

0.429

12,7

1/2

0,214

0,263

0,356

0.457

0,612

0,754

15.88

5/8

0.271

0,334

0.455

0,588

0.796

0,995

19,05

3/4

0.327

0,405

0.553

0,729

0,895

1,236

25.4

1

0.44

0,546

0.75

0,981

1,234

1,574

2.05

31,75

1 1/4

0,554

0,688

0,947

1,244

1,574

2,014

2,641

38,1

1 1/2

0.667

0.832

1,144

1,514

1,904

2,454

3,233

44,5

1 3/4

1,342

1,774

2,244

2,894

3.5

50,8

2

1,549

2,034

2,574

3,334

4.03

63,5

2 1/2

1,949

2,554

3,244

4,214

5.13

76.2

3

2,345

3,084

3,914

5,094

6.19

88,9

3 1/2

2,729

3,609

4,584

5,974

7.27

101.6

4

4,134

5,254

6,854

8.35

114.3

4 1/2

4,654

5,924

7,734

9.43

Bentuk Tabung: Lurus & U-bend & bersirip & Coiled

Stainless Steel Tube: A / SA213, A / SA249, A / SA268, A / SA269, A / SA789, EN10216-5, A / SA688, B / SB163, JIS-G3463, GOST9941-81.

Karbon & Alloy Steel Tube: A / SA178, A / SA179, A / SA192, A / SA209, A / SA210, A / SA213, A.SA214
